Asphalt Rollers Overview

Overview

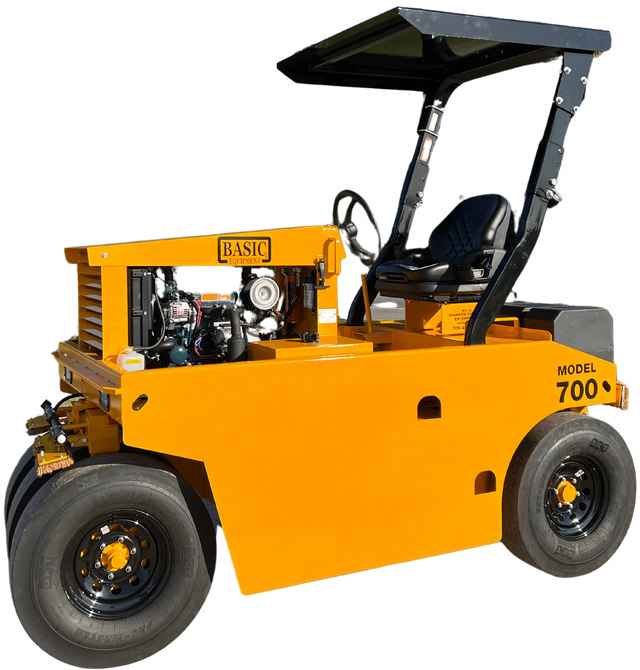

Introducing the Model 700 Pneumatic Asphalt Roller

The Model 700 sets the standard for performance, durability, and ease of use. With its innovative 7-wheel design, this machine delivers superior compaction compared to traditional 9-wheel rollers, making it ideal for parking lots, driveways, and subdivision streets.

Designed for exceptional maneuverability and easy transport, it can be towed behind a ½-ton pickup when tanks are empty. From base work to asphalt and chip seal applications, the Model 700 provides consistent results—helping reduce future repairs and extend the life of your projects.

Built tough and engineered for simplicity, this roller ensures maximum productivity with minimal downtime.

Features At A Glance

Key Features of the Model 700 Pneumatic Asphalt Roller

The Model 700 Pneumatic Asphalt Roller is built for superior performance, durability, and ease of operation. Its innovative design provides consistent compaction and excellent maneuverability—perfect for a wide range of job sites.

7-Wheel Compaction Advantage

This machine’s unique 7-wheel design delivers greater compaction than traditional 9-wheel rollers by distributing weight across fewer tires for enhanced ground pressure and smoother results.

Exceptional Maneuverability & Transportability

Designed for tight spaces, the Model 700 easily navigates small job sites. When the water tanks are empty, it can be conveniently towed behind a ½-ton pickup truck.

Operator-Focused Design

The centered operator seat provides excellent visibility for edge rolling from either side. Simple controls allow operators of all experience levels to work efficiently.

Consistent, Professional Results

Independent wheel oscillation ensures 100% surface contact. Pneumatic tires blend away seams and drum marks, creating a smooth, finished appearance that minimizes future potholes and costly repairs.

Model 700 Pneumatic Asphalt Roller Specifications

Built tough with simplicity in mind, the Model 700 offers the perfect balance of power, performance, and durability for asphalt and chip seal applications.
Dimensions
Length: 112” Width: 51” Height: 74” Wheelbase: 82” Chassis Clearance: 9”
Weight
Operating Weight: 1.5 to 3 Tons
Engine
Powered by Kubota D1105 24.8 HP, Water-Cooled Diesel Engine (Tier 4 Final Compliant)
Drive & Transmission
Hydrostatic Transmission
Chain Drive System - Enclosed Chain Gearboxes
Tires
8.5-15, 6-Ply Pneumatic Tires
Braking System
Hydrostatic Drive Brake Mechanical Parking Brake
Water System
70-Gallon Pressurized Tank with Removable Spray Tips
Steering
Hydraulic Power Steering
Travel Speed
Variable Speed: 0 to 6 mph
Optional Equipment
Safety Beacon, Work Lights, Horn, Deluxe Seat, Aluminum Shade Canopy
Safety Features
ISO Certified Folding ROPS 97 dB Backup Alarm Neutral Safety Start

Applications

The Model 700 Pneumatic Asphalt Roller is engineered for versatility across a wide range of paving and compaction projects. Its design and performance make it ideal for both commercial and residential job sites.

Asphalt Paving

Perfect for compacting fresh asphalt layers on parking lots, driveways, subdivision streets, and private roads. The pneumatic tires help blend seams and eliminate drum marks for a smooth, professional finish.

Chip Seal Compaction

Excellent for chip seal rolling, providing consistent pressure to embed aggregate and extend surface life.

Base Layer Compaction

Ideal for compacting base layers prior to paving, ensuring a solid foundation and reducing future maintenance needs.

Commercial & Residential Projects

Whether it’s a small residential driveway or a large commercial parking lot, the Model 700 offers maneuverability, transportability, and effective compaction in tight spaces.

Municipal & Utility Work

Great for patching streets and performing utility trench backfills where consistent compaction and easy transport are required.

Optional Equipment

Customize your Model 700 Pneumatic Asphalt Roller with a variety of factory-installed options designed to enhance safety, comfort, and functionality.

Safety Beacon

Improves jobsite visibility for added safety in busy or low-light conditions.

Work Lights

Provides additional lighting for early morning, evening, or low-visibility operation, ensuring safe and accurate compaction.

Horn

Equips the machine with an audible warning device for enhanced safety around pedestrians and other workers.

Deluxe Seat

Offers improved operator comfort during long work hours, reducing fatigue and increasing productivity.

Aluminum Shade Canopy

Provides overhead protection from sun and light rain, making long days on the job more comfortable.

Factory-Installed Options

All optional equipment is professionally installed at the factory to ensure perfect fitment and lasting performance.

Overview

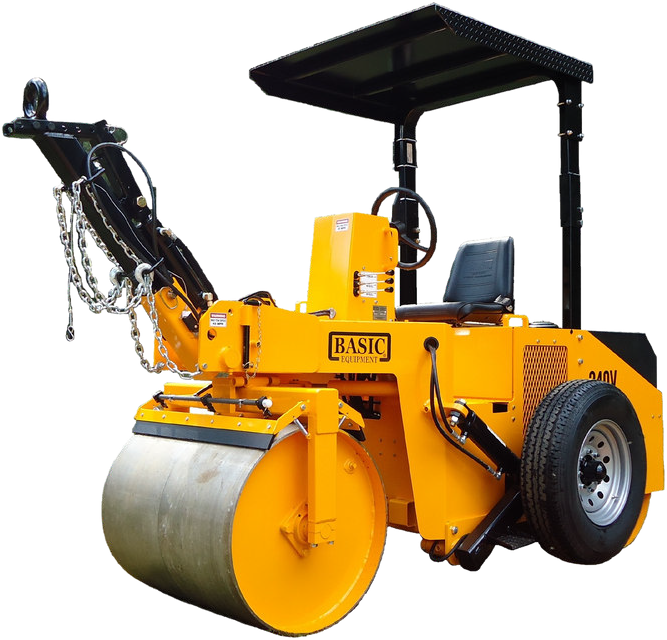

Introducing the Model 240VT (2-4 ton) Towable Roller

The BASIC Model 240VT Split Drum Vibratory Roller – Tow Package is engineered for speed, convenience, and professional-grade results. Its integrated tow package allows for quick transport to and from the jobsite without the need for a separate trailer.

The 240VT is ideally suited for patch crews, parking lot repairs, road maintenance, and subdivision work. The split front drum and heavy-duty rear drum deliver outstanding compaction performance on a variety of surfaces.

Designed for durability and consistent results, the 240VT ensures smooth, even compaction—helping prevent surface defects and minimizing costly rework.

Features At A Glance

Key Features of the Model 240VT (2-4 ton) Towable Roller

The Model 240VT Split Drum Vibratory Roller with Tow Package is built for speed, convenience, and professional-grade results. Its integrated tow package allows for quick and easy transport directly to the jobsite without the need for a separate trailer.

Integrated Tow Package

Eliminates the need for a dedicated trailer, allowing the roller to be quickly hitched and transported to and from the jobsite—saving time and reducing costs.

High-Performance Compaction

Features a split front drum and heavy-duty rear drum that deliver exceptional compaction results for asphalt, base layers, and patch work.

Versatile Jobsite Applications

Ideal for patch crews, parking lot repairs, road maintenance, and subdivision work, offering flexibility for both small and large projects.

Precision Steering & Control

Front drum power steering with 30° left or right movement provides excellent maneuverability in tight spaces and around obstacles.

Consistent, Professional Finish

Delivers smooth, even compaction that helps prevent surface defects and minimizes costly rework, ensuring a high-quality finish on every job.

Model 240VT (2-4 ton) Towable Roller  Specifications

Engineered for efficiency and transport convenience, the Model 240VT delivers high-performance compaction with the versatility of an integrated tow package.

Dimensions

Length (Tongue Up): 137”
Length (Tongue Down): 144.5”
Width: 78”
Height (ROPS Down): 69”
Height (ROPS Up): 96”
Wheelbase: 79.5”

Weight

Shipping Weight: 5,000 lbs

Engine

Powered by Kubota D1524
24.8 HP, 4-Cylinder Water-Cooled Diesel Engine (Tier 4 Final Compliant)

Drive & Transmission

Servo-Controlled Piston Pump
Direct Drive Motor with Internal Spring-Applied Hydraulic Release Brake

Drum Size

Split Front Drum: 2 × 30" Drums (18" Wide Each) — 36" Roll Width
Rear Drum: 30" Drums — 44" Roll Width

Vibratory System

3600 VPM Rear Drum
4,000 lb. Compactive Weight

Braking System

Hydraulic (Integrated in Direct Drive Motor)
Internal Spring-Applied Hydraulic Release Parking Brake

Water System

70-Gallon Molded Plastic Pressurized Tank with Removable Spray Tips

Steering

Front Drum Power Steering — 30° Left or Right from Center

Travel Speed

0–6 mph Forward & Reverse (Variable)

Optional Equipment

Safety Beacon, Work Lights, Horn, Deluxe Seat, Aluminum Shade Canopy

Safety Features

ISO Certified Folding ROPS
97 dB Backup Alarm
Neutral Safety Start

Applications

The Model 240VT Split Drum Vibratory Roller with Tow Package is designed for maximum versatility and jobsite efficiency. Its powerful compaction performance and built-in tow package make it ideal for a wide range of paving and maintenance projects.

Asphalt Paving

Excellent for compacting fresh asphalt on parking lots, roads, and patchwork areas. The split front drum design provides smooth, even compaction with reduced risk of surface defects.

Base Layer Compaction

Perfect for compacting base layers prior to asphalt application, ensuring a stable foundation that extends the life of the finished surface.

Road Maintenance & Patching

Ideal for patch crews working on road repairs, allowing for quick transport between sites without a dedicated trailer.

Commercial & Residential Projects

Performs equally well on small residential driveways and large-scale commercial projects, offering flexibility for various job sizes.

Municipal & Utility Work

Great for compacting around utility cuts, trench backfills, and other municipal repair work where fast setup and consistent results are essential.

Optional Equipment

Customize your Model 240VT Split Drum Vibratory Roller with a range of factory-installed options designed to improve safety, comfort, and overall performance.

Safety Beacon

Increases visibility on the jobsite for enhanced safety, especially in busy areas or low-light conditions.

Work Lights

Provides bright, reliable illumination for early morning, evening, or low-visibility operations to ensure precise compaction.

Horn

Adds an audible warning signal to help protect workers and pedestrians around the machine.

Deluxe Seat

Enhances operator comfort during extended shifts, reducing fatigue and improving productivity.

Aluminum Shade Canopy

Shields the operator from sun and light rain, offering better comfort during long workdays.

Factory-Installed Options

All optional features are installed at the factory to ensure proper fit, reliable performance, and long-term durability.

Overview

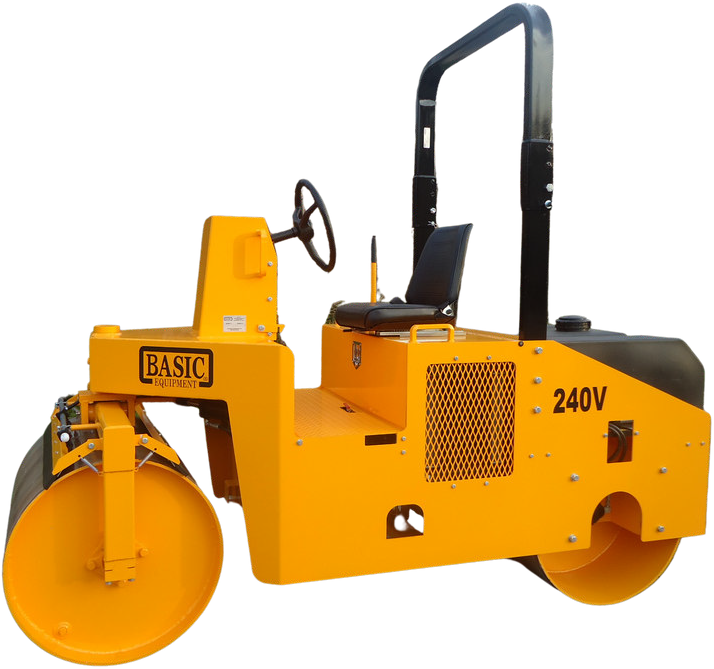

Introducing the MODEL 240V (2-4 ton) Split Drum Vibratory Roller

The Model 240V Split Drum Vibratory Roller is built for power, reliability, and professional results. With its split front drum and heavy-duty rear drum, it delivers smooth, even compaction across asphalt, base layers, and patch work—making it ideal for parking lots, subdivision streets, and road maintenance.

Designed for precision and control, the 240V features front drum power steering with a 30° range, giving operators excellent maneuverability on tight jobsites. Its strong vibratory system provides consistent compaction that helps extend the life of paved surfaces and reduce costly rework.

Built tough and engineered for long service life, the 240V ensures maximum productivity with minimal downtime.

Features At A Glance

Key Features of the Model 240V (2-4 ton) Split Drum Vibratory Roller

The Model 240V is built for power, precision, and dependable performance on a wide range of paving projects. Its split front drum and heavy-duty rear drum deliver smooth, uniform compaction for professional-quality results.

High-Performance Compaction

The combination of split front drums and a 44” rear drum ensures excellent coverage, blending seams and delivering consistent compaction across asphalt and base layers.

Versatile Jobsite Applications

Perfect for parking lots, subdivision streets, road maintenance, and patch work—providing flexibility for both small and large projects.

Precision Steering & Control

Front drum power steering with 30° left or right movement offers excellent maneuverability, even on tight or congested jobsites.

Durable, Reliable Design

Engineered for long service life with a simplistic build that minimizes downtime and reduces maintenance costs.

Consistent, Professional Finish

Delivers a smooth, even surface that reduces the risk of defects and costly rework—ensuring quality results every time.

Model 240V (2-4 ton) Split Drum Vibratory Roller Specifications

Engineered for power and precision, the Model 240V delivers high-performance compaction in a compact design that’s easy to maneuver and built to last.

Dimensions

Length: 114”
Width: 47”
Height (ROPS Down): 69”
Height (ROPS Up): 96”

Weight

Shipping Weight: 4,000 lbs

Engine

Powered by Kubota D1524
24.8 HP, 4-Cylinder Water-Cooled Diesel Engine (Tier 4 Final Compliant)

Drive & Transmission

Servo-Controlled Piston Pump
Direct Drive Motor with Internal Spring-Applied Hydraulic Release Brake

Drum Size

Split Front Drum: 2 × 30" Drums (18" Wide Each) — 36" Roll Width
Rear Drum: 30" Drums — 44" Roll Width

Vibratory System

3600 VPM Rear Drum
4,000 lb. Compactive Weight

Braking System

Hydraulic (Integrated in Direct Drive Motor)
Internal Spring-Applied Hydraulic Release Parking Brake

Water System

70-Gallon Molded Plastic Pressurized Tank with Removable Spray Tips

Steering

Front Drum Power Steering — 30° Left or Right from Center

Travel Speed

0–6 mph Forward & Reverse (Variable)

Optional Equipment

Safety Beacon, Work Lights, Horn, Deluxe Seat, Aluminum Shade Canopy

Safety Features

ISO Certified Folding ROPS
97 dB Backup Alarm
Neutral Safety Start

Applications

The Model 240V Split Drum Vibratory Roller is designed for versatility, precision, and reliable performance. Its powerful compaction system and compact design make it ideal for a wide range of paving and maintenance projects.

Asphalt Paving

Excellent for compacting fresh asphalt on parking lots, subdivision streets, and patchwork areas. The split front drum design provides smooth, even compaction with reduced risk of surface defects.

Base Layer Compaction

Perfect for compacting base layers prior to asphalt application, creating a stable foundation that extends the life of the finished surface.

Road Maintenance & Patching

Well-suited for road repair crews, delivering consistent results and dependable performance on both small and medium-sized jobs.

Commercial & Residential Projects

Performs effectively on small residential driveways as well as larger commercial projects, offering flexibility for multiple job sizes.

Municipal & Utility Work

Great for compacting around utility cuts, trench backfills, and municipal repair work where maneuverability and consistent compaction are critical.

Optional Equipment

Customize your Model 240V Split Drum Vibratory Roller with a selection of factory-installed options designed to enhance safety, comfort, and performance.

Safety Beacon

Improves jobsite visibility for greater safety, especially in high-traffic or low-light conditions.

Work Lights

Provides bright, dependable illumination for early morning, evening, or shaded environments, ensuring accurate compaction.

Horn

Equips the machine with an audible warning device to increase awareness and safety around the roller.

Deluxe Seat

Offers additional operator comfort during long shifts, reducing fatigue and maintaining productivity.

Aluminum Shade Canopy

Provides overhead protection from sun and light rain, making extended work hours more comfortable.

Factory-Installed Options

All optional features are installed at the factory for proper fit, dependable performance, and long-term durability.

Overview

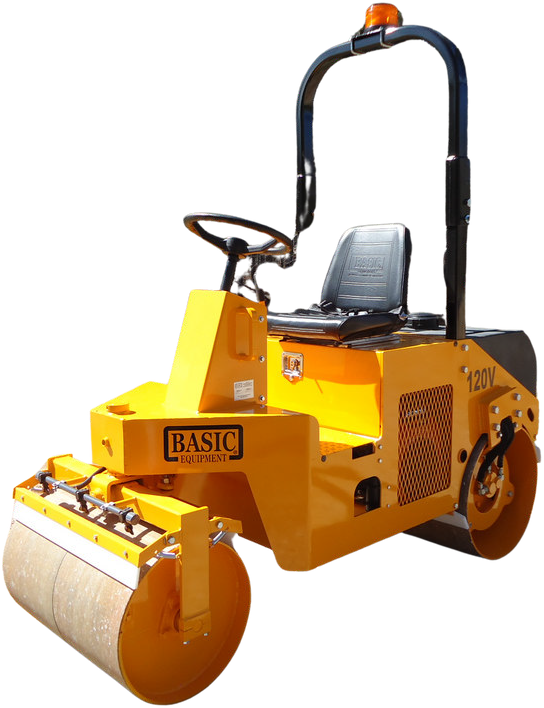

Introducing the MODEL 120V (1-2 ton) Split Drum Vibratory Roller

The MODEL 120V SPLIT DRUM VIBRATORY ROLLER is designed for efficiency, reliability, and smooth performance in a compact package. With its split front drum and vibratory rear drum, it delivers uniform compaction across asphalt and base layers—making it ideal for parking lots, driveways, subdivision streets, and patch work.

Built for precision, the 120V features responsive front drum power steering with a 30° range, allowing operators to maneuver easily in tight spaces and around obstacles. Its dependable vibratory system ensures consistent results that extend pavement life and reduce costly repairs.

Engineered for durability and long service life, the 120V maximizes productivity while minimizing downtime, giving crews a reliable solution for everyday compaction needs.

Features At A Glance

Key Features of the MODEL 120V (1-2 ton) Split Drum Vibratory Roller

The Model 120V is built for efficiency, maneuverability, and dependable performance in a compact design. Its split front drum and vibratory rear drum deliver smooth, uniform compaction for professional-quality results.

High-Performance Compaction

The split front drums and 38” rear drum provide excellent coverage, blending seams and delivering consistent compaction across asphalt and base layers.

Compact & Versatile

Perfect for driveways, parking lots, subdivision streets, and patch work—offering flexibility for both residential and light commercial projects.

Responsive Steering & Control

Front drum power steering with 30° left or right movement ensures excellent maneuverability, even in confined spaces.

Durable, Simplistic Design

Built for long service life with a straightforward design that minimizes downtime and reduces maintenance costs.

Consistent, Professional Finish

Produces a smooth, even surface that helps reduce defects and rework—ensuring reliable results every time.

Model 120V (1-2 ton) Split Drum Vibratory Roller

Specifications

Engineered for compact efficiency and reliable performance, the Model 120V delivers high-quality compaction in a smaller design that’s easy to maneuver and built to last.

Dimensions

Length: 88”
Width: 42”

Weight

Shipping Weight: 2,400 lbs
Operating Weight: 2,900 lbs

Engine

Powered by Kubota D722
Water-Cooled Diesel Engine

Drive & Transmission

Piston Pump
Direct Drive Motor with Internal Spring-Applied Hydraulic Release Brake

Drum Size

Split Front Drum: 2 × 20" Drums — 15" Width, 30" Roll Width
Rear Drum: 24" Diameter Drums — 38" Roll Width

Vibratory System

3600 VPM Rear Drum
3,000 lb. Compactive Weight

Braking System

Direct Drive Motor with Internal Hydraulic Brake
Spring-Applied Hydraulic Release Parking Brake

Water System

42-Gallon Molded Plastic Tank with Removable Spray Tips

Steering

Front Drum Power Steering — 30° Left or Right from Center

Travel Speed

0–7 mph Forward & Reverse

Optional Equipment

Safety Beacon, Work Lights, Horn, Deluxe Seat, Aluminum Shade Canopy

Safety Features

ISO Certified Folding ROPS
97 dB Backup Alarm
Neutral Safety Start

Applications

The Model 120V Split Drum Vibratory Roller is built for versatility and ease of use in compact spaces. Its smaller footprint, efficient compaction system, and responsive steering make it ideal for light- to medium-duty paving and maintenance projects.

Asphalt Paving

Excellent for compacting fresh asphalt on driveways, parking lots, subdivision streets, and small patchwork areas. The split front drum design helps achieve smooth, even results with fewer surface defects.

Base Layer Compaction

Well-suited for compacting base layers prior to asphalt application, creating a solid foundation that improves surface longevity.

Road Maintenance & Patching

A practical choice for road repair crews, offering dependable compaction performance on smaller patch jobs and maintenance work.

Commercial & Residential Projects

Performs equally well on residential driveways and light commercial projects, providing flexibility for a variety of jobsite needs.

Municipal & Utility Work

Ideal for compacting around utility cuts, trench backfills, and municipal projects where maneuverability and consistent results are essential.

Optional Equipment

Customize your Model 120V Split Drum Vibratory Roller with factory-installed options designed to enhance safety, comfort, and jobsite performance.

Safety Beacon

Increases visibility on the jobsite for added safety, especially in busy or low-light conditions.

Work Lights

Provides reliable illumination for early morning, evening, or shaded areas, ensuring accurate compaction results.

Horn

Adds an audible warning device to alert workers and pedestrians around the roller, improving jobsite safety.

Deluxe Seat

Enhances operator comfort during long workdays, reducing fatigue and improving productivity.

Aluminum Shade Canopy

Offers overhead protection from sun and light rain, making extended operation more comfortable.

Factory-Installed Options

All options are professionally installed at the factory to ensure proper fit, reliable operation, and long-term durability.

REQUEST A PRICE FOR 700 PNEUMATIC ASPHALT ROLLER

Thanks for your interest in the MODEL 700 PNEUMATIC ASPHALT ROLLER. To receive a price from your local dealer, please fill out the form below. A dealer representative will follow up with the price information you requested.

REQUEST A PRICE FOR 700 PNEUMATIC ASPHALT ROLLER

Thanks for your interest in the MODEL 700 PNEUMATIC ASPHALT ROLLER. To receive a price from your local dealer, please fill out the form below. A dealer representative will follow up with the price information you requested.

REQUEST A PRICE FOR 240VT (2-4 TON) TOWABLE ROLLER

Thanks for your interest in the MODEL 240VT TOW PACKAGE. To receive a price from your local dealer, please fill out the form below. A dealer representative will follow up with the price information you requested.

REQUEST A PRICE FOR 240V (2-4 TON) SPLIT DRUM VIBRATORY ROLLER

Thanks for your interest in the MODEL 240V SPLIT DRUM VIBRATORY ROLLER. To receive a price from your local dealer, please fill out the form below. A dealer representative will follow up with the price information you requested.

REQUEST A PRICE FOR 120V (1-2 TON) SPLIT DRUM VIBRATORY ROLLER

Thanks for your interest in the SPLIT DRUM VIBRATORY ROLLER MODEL 120V. To receive a price from your local dealer, please fill out the form below. A dealer representative will follow up with the price information you requested.
