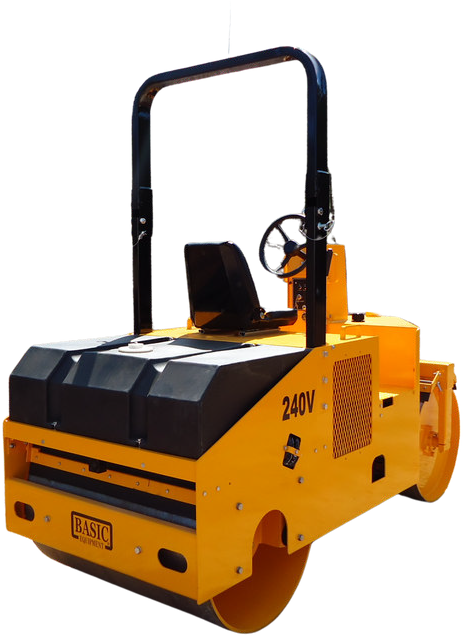

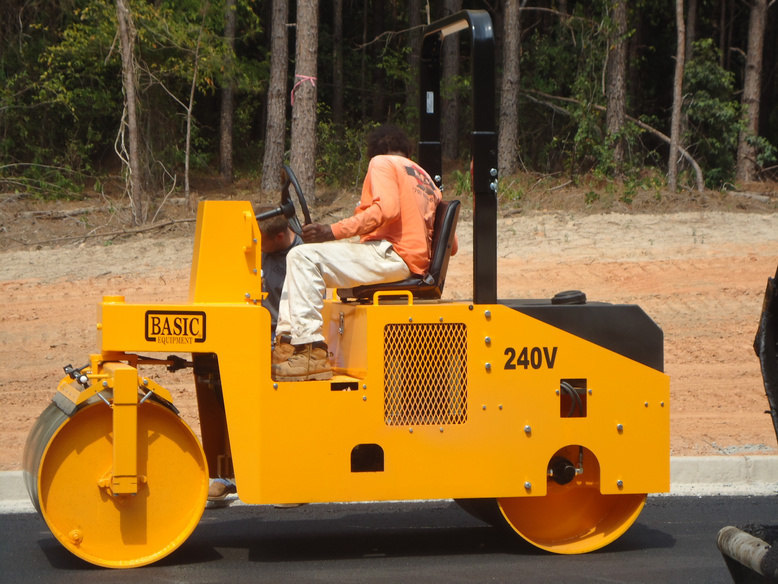

The BASIC Model 240V Split Drum Vibratory Roller is built for powerful, reliable compaction on a wide range of paving projects. With its split front drum and heavy-duty rear drum, the 240V delivers smooth, uniform results across asphalt, base layers, and patch work.
The 240V is ideally suited for parking lots, subdivision streets, road maintenance, and asphalt repair. Its compact dimensions and responsive power steering provide excellent maneuverability and control on any jobsite.
Engineered for durability and long service life, the 240V ensures consistent, professional compaction—reducing the risk of surface defects and minimizing costly rework.
| Length | 114” |
| Width | 47” |
| Height (ROPS Down) | 69” |
| Height (ROPS Up) | 96” |
| D1524 Kubota 24.8hp T4F 4-Cylinder Water Cooled Diesel Engine |
| Shipping Weight: 4,000 lbs |
| Servo Controlled Piston Pump | |
| Drive | Direct Drive Motor with Internal Spring-Applied Hydraulic Release Brake |
| Split Front Drum: 2 × 30" Drums (18" Wide Each) — 36" Roll Width | |
| Rear Drum: 30" Drums — 44" Roll Width |
| Drive Brake | Hydraulic (Integrated in Direct Drive Motor) |
| Parking Brake | Internal Spring-Applied Hydraulic Release Brake |
| Capacity | 70-Gallon Molded Plastic Pressurized Tank |
| Removable Spray Tips | Yes |
| Front Drum Power Steering — 30° Left or Right from Center |
| 0–6 mph Forward & Reverse (Variable) |
| Safety Beacon |
| Work Lights |
| Horn |
| Deluxe Seat |
| Aluminum Shade Canopy |
| ISO Certified |
| Folding ROPS |
| 97 Decibel Back Up Alarm |
| Neutral Safety Start |
The Model 240V Split Drum Vibratory Roller is built for power, reliability, and professional results. With its split front drum and heavy-duty rear drum, it delivers smooth, even compaction across asphalt, base layers, and patch work—making it ideal for parking lots, subdivision streets, and road maintenance.
Designed for precision and control, the 240V features front drum power steering with a 30° range, giving operators excellent maneuverability on tight jobsites. Its strong vibratory system provides consistent compaction that helps extend the life of paved surfaces and reduce costly rework.
Built tough and engineered for long service life, the 240V ensures maximum productivity with minimal downtime.
The Model 240V is built for power, precision, and dependable performance on a wide range of paving projects. Its split front drum and heavy-duty rear drum deliver smooth, uniform compaction for professional-quality results.
The combination of split front drums and a 44” rear drum ensures excellent coverage, blending seams and delivering consistent compaction across asphalt and base layers.
Perfect for parking lots, subdivision streets, road maintenance, and patch work—providing flexibility for both small and large projects.
Front drum power steering with 30° left or right movement offers excellent maneuverability, even on tight or congested jobsites.
Engineered for long service life with a simplistic build that minimizes downtime and reduces maintenance costs.
Delivers a smooth, even surface that reduces the risk of defects and costly rework—ensuring quality results every time.
Engineered for power and precision, the Model 240V delivers high-performance compaction in a compact design that’s easy to maneuver and built to last.
Length: 114”
Width: 47”
Height (ROPS Down): 69”
Height (ROPS Up): 96”
Shipping Weight: 4,000 lbs
Powered by Kubota D1524
24.8 HP, 4-Cylinder Water-Cooled Diesel Engine (Tier 4 Final Compliant)
Servo-Controlled Piston Pump
Direct Drive Motor with Internal Spring-Applied Hydraulic Release Brake
Split Front Drum: 2 × 30" Drums (18" Wide Each) — 36" Roll Width
Rear Drum: 30" Drums — 44" Roll Width
3600 VPM Rear Drum
4,000 lb. Compactive Weight
Hydraulic (Integrated in Direct Drive Motor)
Internal Spring-Applied Hydraulic Release Parking Brake
70-Gallon Molded Plastic Pressurized Tank with Removable Spray Tips
Front Drum Power Steering — 30° Left or Right from Center
0–6 mph Forward & Reverse (Variable)
Safety Beacon, Work Lights, Horn, Deluxe Seat, Aluminum Shade Canopy
ISO Certified Folding ROPS
97 dB Backup Alarm
Neutral Safety Start
The Model 240V Split Drum Vibratory Roller is designed for versatility, precision, and reliable performance. Its powerful compaction system and compact design make it ideal for a wide range of paving and maintenance projects.
Excellent for compacting fresh asphalt on parking lots, subdivision streets, and patchwork areas. The split front drum design provides smooth, even compaction with reduced risk of surface defects.
Perfect for compacting base layers prior to asphalt application, creating a stable foundation that extends the life of the finished surface.
Well-suited for road repair crews, delivering consistent results and dependable performance on both small and medium-sized jobs.
Performs effectively on small residential driveways as well as larger commercial projects, offering flexibility for multiple job sizes.
Great for compacting around utility cuts, trench backfills, and municipal repair work where maneuverability and consistent compaction are critical.
Customize your Model 240V Split Drum Vibratory Roller with a selection of factory-installed options designed to enhance safety, comfort, and performance.
Improves jobsite visibility for greater safety, especially in high-traffic or low-light conditions.
Provides bright, dependable illumination for early morning, evening, or shaded environments, ensuring accurate compaction.
Equips the machine with an audible warning device to increase awareness and safety around the roller.
Offers additional operator comfort during long shifts, reducing fatigue and maintaining productivity.
Provides overhead protection from sun and light rain, making extended work hours more comfortable.
All optional features are installed at the factory for proper fit, dependable performance, and long-term durability.
