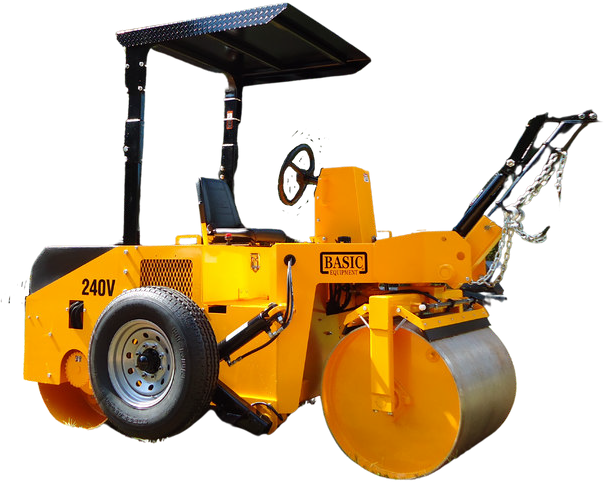

The BASIC Model 240VT Split Drum Vibratory Roller – Tow Package is engineered for speed, convenience, and professional-grade results. Its integrated tow package allows for quick transport to and from the jobsite without the need for a separate trailer.
The 240VT is ideally suited for patch crews, parking lot repairs, road maintenance, and subdivision work. The split front drum and heavy-duty rear drum deliver outstanding compaction performance on a variety of surfaces.
Designed for durability and consistent results, the 240VT ensures smooth, even compaction—helping prevent surface defects and minimizing costly rework.
Overall Dimensions:
Length: 112”
Width: 51”
Height: 74”
Wheel Base: 82”
Chassis Clearance: 9”
Weight:
1.5 to 3 Tons
Transmission:
Hydrostatic
Drive: Chain
Tire Size:
8.5-15 6Ply
Powered By:
D1105 Kubota 24.8hp T4F
Water Cooled Diesel Engine
Braking:
Drive Brake: Hydrostatic
Parking Brake: Mechanical
Pressurized Water System:
Capacity: 70 gallons
Removable Spray Tips
Steering:
Hydraulic power steering
Travel Speed:
0–6 Variable
Options:
Safety Beacon
Work Lights
Horn
Deluxe Seat
Aluminum Shade Canopy
Safety Features:
ISO Certified
Folding ROPS
97 Decibel Back Up Alarm
Neutral Safety Start
| Length (Tongue Up) | 137” |
| Length (Tongue Down) | 144.5” |
| Width | 78” |
| Height (ROPS Down) | 69” |
| Height (ROPS Up) | 96” |
| Wheelbase | 79.5” |
| D1524 Kubota 24.8hp T4F 4-Cylinder Water Cooled Diesel Engine |
| 5,000 lbs |
| Servo Controlled Piston Pump | |
| Drive | Direct Drive Motor with Internal Spring-Applied Hydraulic Release Brake |
| Split Front Drum: 2 × 30" Drums (18" Wide Each) — 36" Roll Width | |
| Rear Drum: 30" Drums — 44" Roll Width |
| Drive Brake | Hydraulic (Integrated in Direct Drive Motor) |
| Parking Brake | Internal Spring-Applied Hydraulic Release Brake |
| Capacity | 70-Gallon Molded Plastic Pressurized Tank |
| Removable Spray Tips | Yes |
| Front Drum Power Steering — 30° Left or Right from Center |
| 0–6 mph Forward & Reverse (Variable) |
| Safety Beacon |
| Work Lights |
| Horn |
| Deluxe Seat |
| Aluminum Shade Canopy |
| ISO Certified |
| Folding ROPS |
| 97 Decibel Back Up Alarm |
| Neutral Safety Start |
The Model 700 sets the standard for performance, durability, and ease of use. With its innovative 7-wheel design, this machine delivers superior compaction compared to traditional 9-wheel rollers, making it ideal for parking lots, driveways, and subdivision streets.
Designed for exceptional maneuverability and easy transport, it can be towed behind a ½-ton pickup when tanks are empty. From base work to asphalt and chip seal applications, the Model 700 provides consistent results—helping reduce future repairs and extend the life of your projects.
Built tough and engineered for simplicity, this roller ensures maximum productivity with minimal downtime.
The Model 240VT Split Drum Vibratory Roller with Tow Package is built for speed, convenience, and professional-grade results. Its integrated tow package allows for quick and easy transport directly to the jobsite without the need for a separate trailer.
Eliminates the need for a dedicated trailer, allowing the roller to be quickly hitched and transported to and from the jobsite—saving time and reducing costs.
Features a split front drum and heavy-duty rear drum that deliver exceptional compaction results for asphalt, base layers, and patch work.
Ideal for patch crews, parking lot repairs, road maintenance, and subdivision work, offering flexibility for both small and large projects.
Front drum power steering with 30° left or right movement provides excellent maneuverability in tight spaces and around obstacles.
Delivers smooth, even compaction that helps prevent surface defects and minimizes costly rework, ensuring a high-quality finish on every job.
Engineered for efficiency and transport convenience, the Model 240VT delivers high-performance compaction with the versatility of an integrated tow package.
Length (Tongue Up): 137”
Length (Tongue Down): 144.5”
Width: 78”
Height (ROPS Down): 69”
Height (ROPS Up): 96”
Wheelbase: 79.5”
Shipping Weight: 5,000 lbs
Powered by Kubota D1524
24.8 HP, 4-Cylinder Water-Cooled Diesel Engine (Tier 4 Final Compliant)
Servo-Controlled Piston Pump
Direct Drive Motor with Internal Spring-Applied Hydraulic Release Brake
Split Front Drum: 2 × 30" Drums (18" Wide Each) — 36" Roll Width
Rear Drum: 30" Drums — 44" Roll Width
3600 VPM Rear Drum
4,000 lb. Compactive Weight
Hydraulic (Integrated in Direct Drive Motor)
Internal Spring-Applied Hydraulic Release Parking Brake
70-Gallon Molded Plastic Pressurized Tank with Removable Spray Tips
Front Drum Power Steering — 30° Left or Right from Center
0–6 mph Forward & Reverse (Variable)
Safety Beacon, Work Lights, Horn, Deluxe Seat, Aluminum Shade Canopy
ISO Certified Folding ROPS
97 dB Backup Alarm
Neutral Safety Start
The Model 240VT Split Drum Vibratory Roller with Tow Package is designed for maximum versatility and jobsite efficiency. Its powerful compaction performance and built-in tow package make it ideal for a wide range of paving and maintenance projects.
Excellent for compacting fresh asphalt on parking lots, roads, and patchwork areas. The split front drum design provides smooth, even compaction with reduced risk of surface defects.
Perfect for compacting base layers prior to asphalt application, ensuring a stable foundation that extends the life of the finished surface.
Ideal for patch crews working on road repairs, allowing for quick transport between sites without a dedicated trailer.
Performs equally well on small residential driveways and large-scale commercial projects, offering flexibility for various job sizes.
Great for compacting around utility cuts, trench backfills, and other municipal repair work where fast setup and consistent results are essential.
Customize your Model 240VT Split Drum Vibratory Roller with a range of factory-installed options designed to improve safety, comfort, and overall performance.
Increases visibility on the jobsite for enhanced safety, especially in busy areas or low-light conditions.
Provides bright, reliable illumination for early morning, evening, or low-visibility operations to ensure precise compaction.
Adds an audible warning signal to help protect workers and pedestrians around the machine.
Enhances operator comfort during extended shifts, reducing fatigue and improving productivity.
Shields the operator from sun and light rain, offering better comfort during long workdays.
All optional features are installed at the factory to ensure proper fit, reliable performance, and long-term durability.
