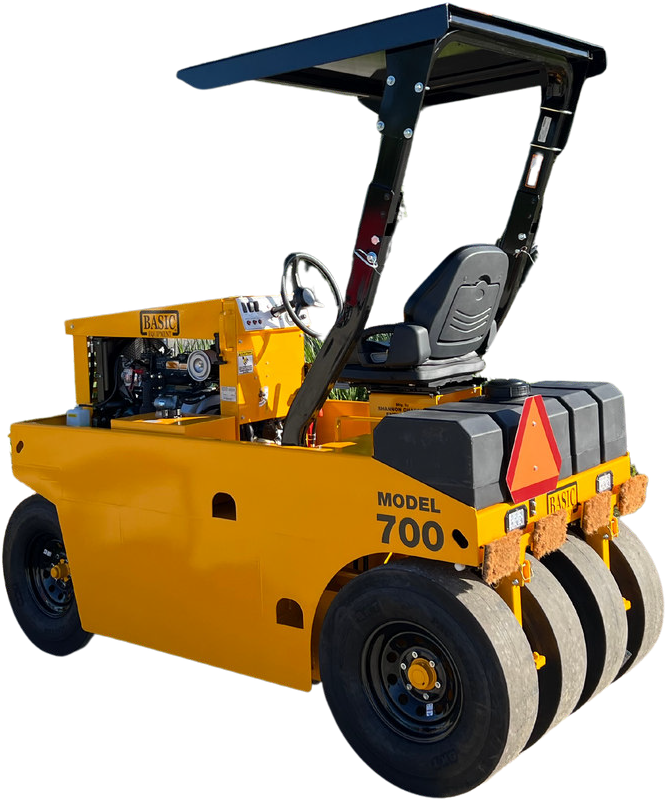

The BASIC Model 700 Rubber Tire Roller is a tried and proven machine. It features a seven-wheel design for greater compaction and easy maneuverability on small job sites.
The 700 is ideally suited for commercial parking lots, driveways, and subdivision streets. Its simplistic design promotes longer machine life, and all-wheel independent oscillation ensures 100% surface contact—blending away seams and steel drum roller marks.
The 700 provides consistent compaction across the work surface, minimizing the potential for potholes and costly warranty repairs.
Overall Dimensions:
Length: 112”
Width: 51”
Height: 74”
Wheel Base: 82”
Chassis Clearance: 9”
Weight:
1.5 to 3 Tons
Transmission:
Hydrostatic
Drive: Chain
Tire Size:
8.5-15 6Ply
Powered By:
D1105 Kubota 24.8hp T4F
Water Cooled Diesel Engine
Braking:
Drive Brake: Hydrostatic
Parking Brake: Mechanical
Pressurized Water System:
Capacity: 70 gallons
Removable Spray Tips
Steering:
Hydraulic power steering
Travel Speed:
0–6 Variable
Options:
Safety Beacon
Work Lights
Horn
Deluxe Seat
Aluminum Shade Canopy
Safety Features:
ISO Certified
Folding ROPS
97 Decibel Back Up Alarm
Neutral Safety Start
| Length | 112” |
| Width | 51” |
| Height | 74” |
| Wheel Base | 82” |
| Chassis Clearance | 9” |
| D1105 Kubota 24.8hp T4F Water Cooled Diesel Engine |
| 1.5 to 3 Tons |
| Hydrostatic | |
| Drive | Chain - Enclosed Chain Gearboxes |
| 8.5-15 6Ply |
| Drive Brake | Hydrostatic |
| Parking Brake | Mechanical |
| Capacity | 70 gallons |
| Removable Spray Tips |
| Hydraulic power steering |
| 0–6 Variable |
| Safety Beacon |
| Work Lights |
| Horn |
| Deluxe Seat |
| Aluminum Shade Canopy |
| ISO Certified Folding ROPS |
| 97 Decibel Back Up Alarm |
| Neutral Safety Start |
The Model 700 sets the standard for performance, durability, and ease of use. With its innovative 7-wheel design, this machine delivers superior compaction compared to traditional 9-wheel rollers, making it ideal for parking lots, driveways, and subdivision streets.
Designed for exceptional maneuverability and easy transport, it can be towed behind a ½-ton pickup when tanks are empty. From base work to asphalt and chip seal applications, the Model 700 provides consistent results—helping reduce future repairs and extend the life of your projects.
Built tough and engineered for simplicity, this roller ensures maximum productivity with minimal downtime.
The Model 700 Pneumatic Asphalt Roller is built for superior performance, durability, and ease of operation. Its innovative design provides consistent compaction and excellent maneuverability—perfect for a wide range of job sites.
This machine’s unique 7-wheel design delivers greater compaction than traditional 9-wheel rollers by distributing weight across fewer tires for enhanced ground pressure and smoother results.
Designed for tight spaces, the Model 700 easily navigates small job sites. When the water tanks are empty, it can be conveniently towed behind a ½-ton pickup truck.
The centered operator seat provides excellent visibility for edge rolling from either side. Simple controls allow operators of all experience levels to work efficiently.
Independent wheel oscillation ensures 100% surface contact. Pneumatic tires blend away seams and drum marks, creating a smooth, finished appearance that minimizes future potholes and costly repairs.
Built tough with simplicity in mind, the Model 700 offers the perfect balance of power, performance, and durability for asphalt and chip seal applications.
Length: 112”
Width: 51”
Height: 74”
Wheelbase: 82”
Chassis Clearance: 9”
Operating Weight: 1.5 to 3 Tons
Powered by Kubota D1105
24.8 HP, Water-Cooled Diesel Engine (Tier 4 Final Compliant)
Hydrostatic Transmission
Chain Drive System
8.5-15, 6-Ply Pneumatic Tires
Hydrostatic Drive Brake
Mechanical Parking Brake
70-Gallon Pressurized Tank with Removable Spray Tips
Hydraulic Power Steering
Variable Speed: 0 to 6 mph
Safety Beacon, Work Lights, Horn, Deluxe Seat, Aluminum Shade Canopy
ISO Certified Folding ROPS
97 dB Backup Alarm
Neutral Safety Start
The Model 700 Pneumatic Asphalt Roller is engineered for versatility across a wide range of paving and compaction projects. Its design and performance make it ideal for both commercial and residential job sites.
Perfect for compacting fresh asphalt layers on parking lots, driveways, subdivision streets, and private roads. The pneumatic tires help blend seams and eliminate drum marks for a smooth, professional finish.
Excellent for chip seal rolling, providing consistent pressure to embed aggregate and extend surface life.
Ideal for compacting base layers prior to paving, ensuring a solid foundation and reducing future maintenance needs.
Whether it’s a small residential driveway or a large commercial parking lot, the Model 700 offers maneuverability, transportability, and effective compaction in tight spaces.
Great for patching streets and performing utility trench backfills where consistent compaction and easy transport are required.
Customize your Model 700 Pneumatic Asphalt Roller with a variety of factory-installed options designed to enhance safety, comfort, and functionality.
Improves jobsite visibility for added safety in busy or low-light conditions.
Provides additional lighting for early morning, evening, or low-visibility operation, ensuring safe and accurate compaction.
Equips the machine with an audible warning device for enhanced safety around pedestrians and other workers.
Offers improved operator comfort during long work hours, reducing fatigue and increasing productivity.
Provides overhead protection from sun and light rain, making long days on the job more comfortable.
All optional equipment is professionally installed at the factory to ensure perfect fitment and lasting performance.
